IP68 24 to144 Fibre Dome Splice Enclosure
Key Features:
- Supports up to IP68
- Supports up to 144 fibres (6 x 124 way splice trays)
- Suitable for Aerial, direct burial, wall/pole mounting
- Lightening protection grounding device
- Anti-corrosive
- Anti-vibration and anti-shock properties
- Dimensions (mm) 185 x 421
Ask a question
IP68 24 to 144 Fibre Dome Splice Enclosure

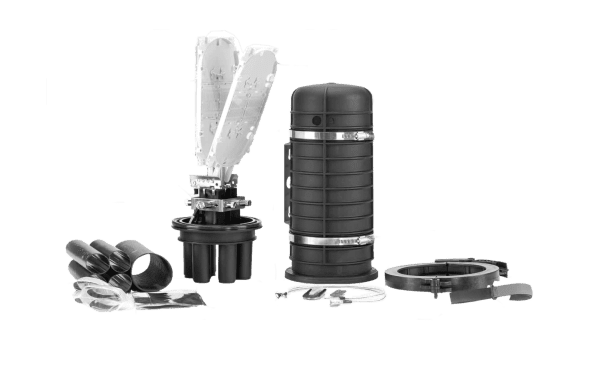

The IP68 fibre dome splice enclosure is used to house distribution cable and is widely applied in communication, network systems and cable TV. The product features a robust polypropylene shell that provides anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock properties. This particular IP68 fibre dome splice enclosure houses up to 6 splice trays, hinged for access of any splice without disturbing others trays. Fast and reliable sealing is made possible using the clamp provided and with an IP68 rating and lightning protection grounding device, it can be used for aerial, wall mounting or direct burial applications.
Features:
- Supports up to IP68
- Supports up to 144 fibres (6 x 24 way splice trays)
- Suitable for Aerial, direct burial, wall/pole mounting
- Lightening protection grounding device
- Anti-corrosive
- Flame retardant
- Waterproof
- Anti-vibration and anti-shock properties
- Dimensions (mm) 185 x 421
- Durability (Years) 25
Technical Specification
| Dimensions (mm) | 185 x 421 |
| Net Weight | 2.3kg |
| Diameter of Cable (mm) | ø 7~ø 22 |
| No. of Cable Inlet/Outlet | 5 |
| Number of Fibres per Tray | 24 |
| Max. Number of Trays | 6 |
| Max. Number of Fibres | 144 |
| Sealing of Inlet/Outlet Ports | Heat-shrinkable tube |
| Sealing of Shells | Silicon rubber |
| Materials |
Dome/Clamp/Base – Modified PP Tray – ABS Metal – Stainless Steel |
| IP Rating | 68 |
| Applications | Aerial, direct burial, wall/pole mounting |
If you also require any other items with your IP68 fibre dome splice enclosure we offer a wide range of fibre optic accessories, consumables and containment. We also supply a large range of fibre adaptors in simplex, duplex and quad options, pigtails and patch leads in both multimode and singlemode all of which you can add to your order. We stock a range of the industry standard options such as LC, ST, SC, FC and APC options.
We are able to supply a range of non standard products so if you cannot find what you require then please do not hesitate to contact us at [email protected] or call us on 01525 841526.
