IP65 Medium 6 Port SC DPX Fibre Box
Key Features:
- IP65 Rated
- Supports up to (6 x SC Duplex – 12 fibres) or (6 x LC Quad – 24 fibres)
- Multiple fibre adaptor options available
- Supplied with fibre transit tubing and tie wraps
- Supplied with wall fixings
- (H) 258mm x (W) 186mm x (D) 61mm
Ask a question
IP65 Medium 6 Port SC DPX Fibre Box

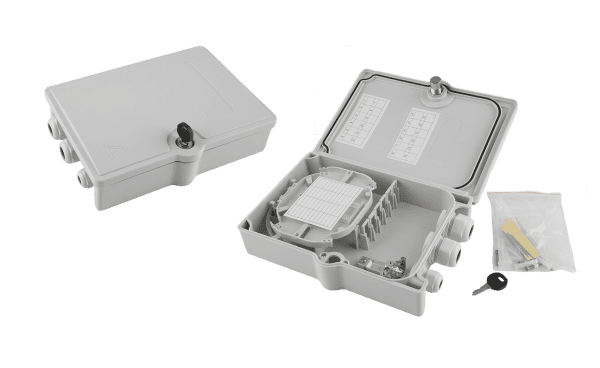

This IP65 lockable fibre enclosure offers the ability to terminate 24 fibres housed in a strong, robust, ABS enclosure for indoor and outdoor applications. The enclosure can accept a number of adaptor types, with two outgoing and one incoming cable entry points that are sealed to ensure the IP65 rating is protected once installed. This particular IP65 lockable fibre enclosure has integrated cable tie positions and fibre bend radius protection. Both the front lockable door and splice tray are detachable to enable easy installation.
Features:
- Supports up to IP65
- Supports up to (6 x SC Duplex – 12 fibres) or (6 x LC Quad – 24 fibres)
- APC variants available
- Hinged / removable splice tray assists installation
- Multiple adaptor options available
- Secure lockable front door
- Supplied with fibre transit tubing wall fixings and tie wraps
- Integrated bend radius
Technical Specification
| Height – Width – Depth | 258mm x 186mm x 61mm |
| Net weight | 0.85kg |
| Material | ABS |
| Cable Entry | 1 |
| Cable Exit | 2 |
| IP Rating | IP65 |
| Designed in accordance with | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 |
If you also require fibre adaptors with your IP65 lockable enclosure we offer a wide range in both multimode and singlemode which you can add to your order. We stock a range of the industry standard adaptors such as LC, ST, SC, FC. We offer simplex, duplex and quad options across the range.
We are able to supply a range of non standard adaptors so if you cannot find what you require then please do not hesitate to contact us at [email protected] or call us on 01525 841526.
