IP65 Medium 4 Port SC SPX Fibre Box
Key Features:
- IP65 Rated
- Supports up to 8 fibres
- Multiple fibre adaptor options available
- Supplied with heat shrink splice protectors
- Supplied with wall fixings
- Supplied with cable ties
- (H) 191mm x (W) 120mm x (D) 44mm
Ask a question

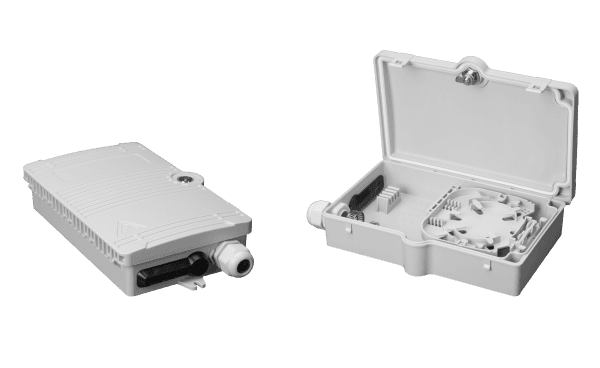

IP65 Medium 4 Port SC SPX Fibre Box
This IP65 fibre enclosure offers the ability to terminate 8 fibres housed in a strong ABS enclosure, suitable for both indoor and outdoor applications and is lockable with a key. The enclosure has a detachable front door and hinged/ detachable splice tray that allows for easy access during installation or re-work. This particular IP65 fibre enclosure offers 2 exit points and 1 incoming entry points, with integrated jubilee clip to ensure secure cable installation. Both the entry and exit points uphold the IP65 rating.
Features:
- IP 65 rated
- Lockable front door
- Supports up to 8 fibres
- Detachable front door
- Hinged/detachable splice trays assists installation
- Accepts loose tube, distribution and pre-terminated cables
- Sealing glands for up to 8 cables
- Supplied with heat shrink splice protectors, wall fixings and cable ties.
- ROHS, REACH & SvHC materials compliant
Technical Specification
| Height – Width – Depth | 191mm x 120mm x 44mm |
| Net weight | 0.404kg |
| Suitable for adaptor Type | SC simplex, LC duplex |
| Number of fibres | 8 |
| Number of ports | 4 |
| Cable Entry | 1 |
| Cable Exit | 2 |
| IP Rating | IP65 |
| Designed in accordance with | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 |
If you also require fibre adaptors with your IP65 fibre enclosure we offer a wide range in both multimode and singlemode which you can add to your order. We stock a range of the industry standard adaptors such as LC, ST, SC, FC. We offer simplex, duplex and quad options across the range.
We are able to supply a range of non standard adaptors so if you cannot find what you require then please do not hesitate to contact us at [email protected] or call us on 01525 841526.
