IP65 Medium 12 Port SC SPX Fibre Box
Key Features
- IP65 Rated
- Supports up to 24 fibres
- Multiple fibre adaptor options available
- Supplied with heat shrink splice protectors, transit tubing and cable ties
- Supplied with wall fixings
- Integrated bend radius protection
- Detachable door for ease of installation
- (H) 235 x (W) 205mm x (D) 60mm
Ask a question
IP65 Medium 12 Port SC SPX Fibre Box

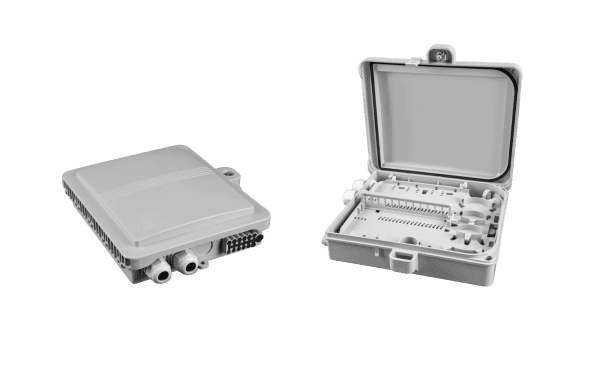

This IP65 locking fibre box offers the ability to terminate 24 fibres housed in a strong, robust, ABS enclosure for indoor and outdoor applications. The enclosure can accept a number of adaptor types, with two incoming cable entry points and 12 patch cord exit points that are sealed to ensure the IP65 rating is protected once installed. This particular IP65 locking fibre box has integrated cable tie positions and fibre bend radius protection. Both the front lockable door and splice tray are detachable to enable easy installation.
Features:
- Supports up to IP65
- Supports up to 24 fibres
- 12 adaptor positions
- Hinged/detachable splice tray assists installation
- Multiple adaptor options available
- Secure lockable front door
- Supplied with heat shrink splice protectors, fibre transit tubing,
wall fixings and cable ties - Integrated bend radius protection
- Detachable door for ease of installation
- ROHS, REACH & SvHC materials compliant
Technical Specification
| Height – Width – Depth | 235mm x 205mm x 60mm |
| Net weight | 0.9kg |
| Material | ABS |
| Suitable for adaptor type | SC Simplex, LC Duplex |
| Cable Entry | 2 |
| Cable Exit | 12 Patch Cords |
| IP Rating | IP65 |
| Designed in accordance with | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754 |
If you also require fibre adaptors with your IP65 locking fibre box we offer a wide range in both multimode and singlemode which you can add to your order. We stock a range of the industry standard adaptors such as LC, ST, SC, FC. We offer simplex, duplex and quad options across the range.
We are able to supply a range of non standard adaptors so if you cannot find what you require then please do not hesitate to contact us at [email protected] or call us on 01525 841526.
